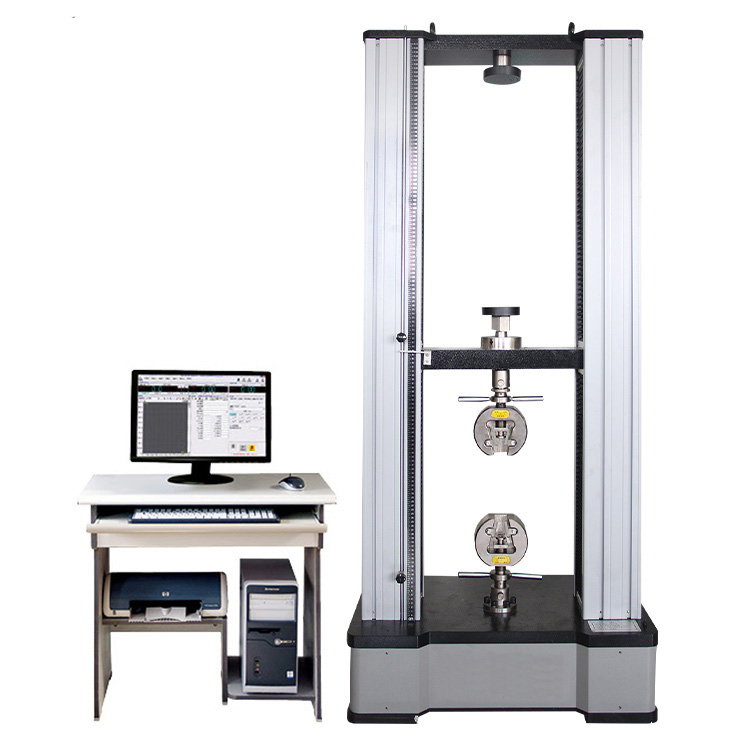

Electronic Flexural And Bending Testing Machine For Tile Gypsum board
It is used to test the bending resistance and bending resistance of various ceramic tiles, asbestos cement wave, asbestos cement slab, straw board, gypsum board, lightweight insulation material board, wood board, and various non-metal composite boards and research.
2. Standards
GB / T3810.1-2016 Test Methods for Ceramic Tiles Part 1: Sampling and acceptance conditions;
GB / T3810.4-2016 Test method for ceramic tiles Part 4: Determination of modulus of rupture and breaking strength;
GB / T9966.2-Test methods for natural facing stones
GB / T4100-2015 ceramic tiles
GB 26539-2011 anti-static ceramic tiles;
GB / T9775- paper gypsum board;
JCT997-Decorative paper gypsum board;
GB / T26204-Paperboard with gypsum board cover;
GB / T12914-Determination of tensile strength of paper and paperboard;
GB / T17669.3-Determination of mechanical properties of architectural gypsum;
GB / T9776-Building plaster;
DIN 53291-Sandwich structure test. Pressure test perpendicular to surface layer;
DIN 53292-Sandwich structure inspection. Tensile test perpendicular to the surface;
DIN 53293-Sandwich structure inspection. Bending test;
DIN 53294-Interlayer structure inspection. Shear test;
ASTM C1658 / C1658M-2013 standard specification of glass fiber gypsum board;
3.Technical Parameters
| Model | WDW-10/20/30/50/100ZY |
| Max. Load(kN) |
10/20/30/50/100 50 50 |
| Load accuracy | Class 1 |
| Load range | 2%～100%F·S |
| Load resolution | 1/300000 |
| Resolution of deformation | 0.04um |
| Accuracy of displacement | Within±0.5%of indicating load |
| Resolution of displacement | 0.01mm |
| Test speed(mm/min) | 0.05-500 stepless arbitrary setting |
| Speed accuracy | within ±1% / ±0.5% of set speed |
| E-Tensile space(mm) | Customized |
| E-Compression space(mm) | Customized |
| D-Test width(mm) | 500 (can be customized) |
| F-Beam travel distance(mm) | 1050 |
| H-Workbench thickness(mm) | 58 |
| I-Base height(mm) | 435 |
| Power supply | AC220V±10%，50Hz/60Hz (can be customized) |
|
